Navigation System

The basic Navigation System

X–Band–FMCW-Radar with an Antenna Length of 1m (Optional: 1,6 m / 2 m)

Echo–Sounder (100 KHz)

GPS

Compass

Electronic Sea Chart & Waypoint System

18” TFT

Optional are

• Radar Roll / Pitch Compensator
• Flat Screen Display of high brightness: 15” TFT 1600cd/m²
• Forward Looking Sonar (Scanning System)
• Sonar Audio Channel
• Camera for Surveillance, Docking and Underwater (Ship hull Inspection)
• Weather (Wind, Barometric Pressure, Temperature (water and air) etc.
• Motor Sensors (Oil / Water, Temperature, Pressure)
• Shaft Rotation, Rudder Position
• Roll / Pitch / Heave – Sensors
• TV plus Internet Connection
• Radar Tracker (ARPA) CPA and TCPA Calculation
• Track Pilot (adaptive)
• Man over Board
• Logbook
• CTD - Probe
• Subbottom - Profiler
• Passive Towed Array Sonar
• Active Towed Array Sonar

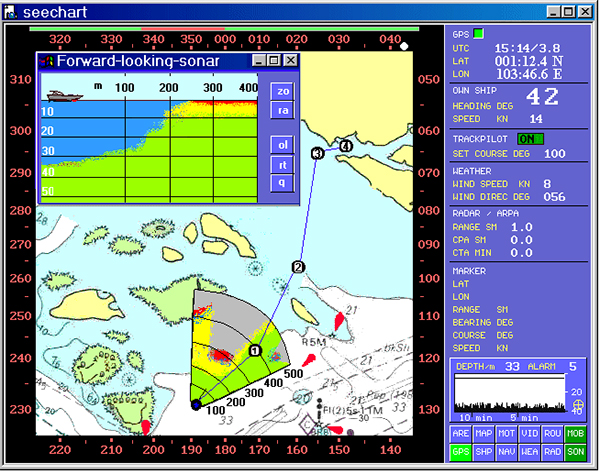

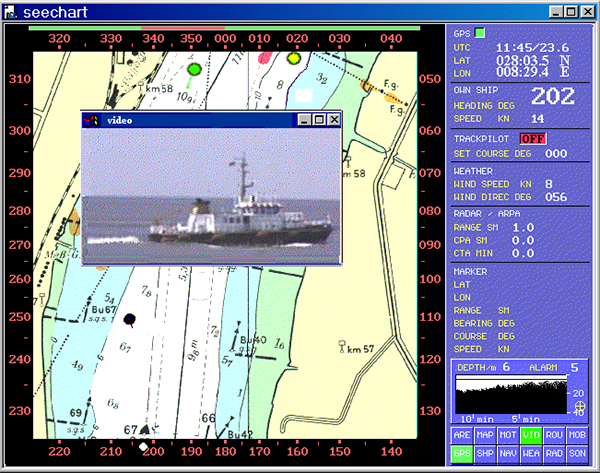

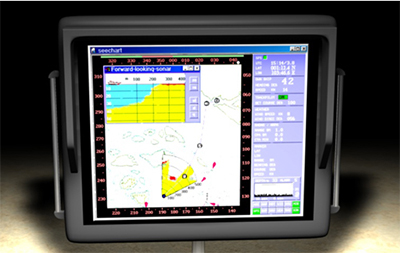

Display Examples
